Autel MaxiTPMS TBE200

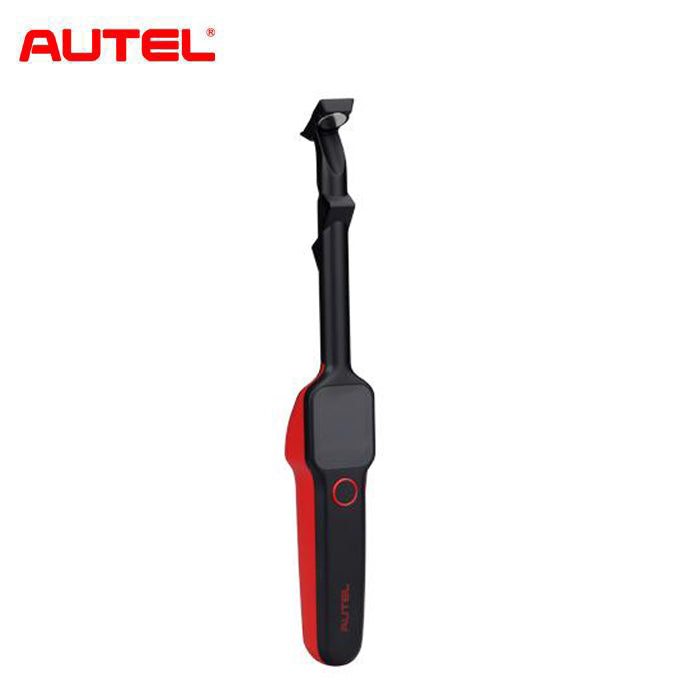

The MaxiTPMS TBE200 is a laser-enabled tire tread depth brake disc wear examiner that provides users with quick and accurate wear measurements. It features a 1.65” AMOLED super retina touchscreen, displaying measurement data curves in real-time. The TBE200dual cameras enable users to document tire wear and damage and scan Tire Identification Number (TIN). Use the tool separately, or with ITS600 to view and print detailed TPMS reports.
Why Choose Autel MaxiTPMS TBE200?
-
Easier Measurement - Tire tread depth brake disc wear check in one tool, no need to remove the wheel during measurement
-
Newest 2-in-1 Tire Brake Examiner - Autel TBE200 is the upgraded version of TBE100 added scan DOT, tire expiration notice, tire recall lookup, take photos of tire wear and damage etc, supports almost all tire types, comprehensive test report (Need ITS600).
-
Tire Tread Depth & Brake Disc Wear Tester - Autel MaxiTPMS TBE200 is not only a laser inspector with a measuring accuracy of 0.1 mm, but also measurements displayed graphically. It is convenient for technics and repair shops to measure tread depth/brake disc wear without removing wheel
-
Enhancing the TBE200 with the ITS600 - When used with the 👉ITS600👈, The TBE200 will take advantage of the ITS600’s larger screen to collect tire tread and brake disc wear information, combine it with TPMS information from the ITS 600 to produce comprehensive vehicle health reports that include detailed information for both service areas. These reports can be printed and presented or kept as records for the repairer.
-
Real-Time Tire Health Analysis - Autel TBE200 tread depth reader provides wear analysis and displays the measurement data curves in real-time and service advice on its 1.65-inch-high resolution Super Retina touchscreen AMOLED
-
1-Year Free Software Update - After you register and log in, you can enjoy a free software upgrade for one year. After one year, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device
Autel MaxiTPMS TBE200 TPMS Functions
- Real-time measurement data on touchscreen
- Measurement data curve display
- Uneven wear analysis
- Test detail for single tire tread / brake disc
- Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)
- Scan DOT, tire expiration notice, tire recall lookup
- Take photos of tire wear & damage
Autel's Perfect TPMS Pair - The TBE200 with ITS600
The TBE200 powerful feature set can be used as a standalone device.
But the benefits increase when used in conjunction with the ITS600 TPMSand service tool taking advantage of the larger display, We can pair the tools wirelessly and integrate the information collected from the tires and brake discs with detailedTPMSinformation with the combined abilities of these two tools we can provide the most comprehensiveTPMSentire health reports known to the industry The TBE 200 is so advanced that it can provide uneven wear analysis and detailed replacement and maintenance suggestions
Autel MaxiTPMS TBE200 Comprehensive Test Report
Comprehensive Test Report: TPMS health, Tire tread depth brake disc wear characteristics Repair tips (Requires ITS600)
Autel MaxiTPMS TBE200 Vehicle Coverage
Autel MaxiTPMS TBE200 Specifications:
| Recommended Use |
Indoor |
| Processor: |
4x ARM Cortex-A35 (1.5 GHz) |
| Memory: |
1GB RAM LPDDR3 4GB ROM |
| Display: |
1.65-inch AMOLED capacitive touchscreen with 348×442 resolution |
| Connectivity: |
Wi-Fi/USB 2.0/Type C |
| Sensors; |
CMOS WXGA, 1 megapixel 8 megapixel, 30fps |
| Audio Input/Output: |
Output: Beep |
| Power and Battery: |
3.7 V/3000 mAh 18650 lithium-ion battery/Charges via 5 V AC/DC power supply |
| Tested Battery Life: |
Around 8 hours of continuous use |
| Battery Charging Input : |
5 V/1.5 A |
| Power Consumption: |
300 mA (AMOLED on with default brightness) @3.7 V |
| Operating Temp.: |
-10to60°C(14to140°F) |
| Storage Temp.: |
-20to70°C(-4to158°F) |
| Operating Humidity: |
5%-95%non-condensing |
| Dimensions (W x H x D): |
283.0 mm (11.14”) x 39.0 mm (1.54”) x 33.5 mm (1.32”) |
| Net Weight |
188 g (0.41 lb.) |
Autel MaxiTPMS TBE200 Package list:
- 1x MaxiTPMS TBE200 Main Unit
- 1x Calibration Table
- 1x Power Adapter
- 1x Type C USB Cable
- 1x Quick Reference Guide
- 1x Packing List
- 1x Carrying Case
