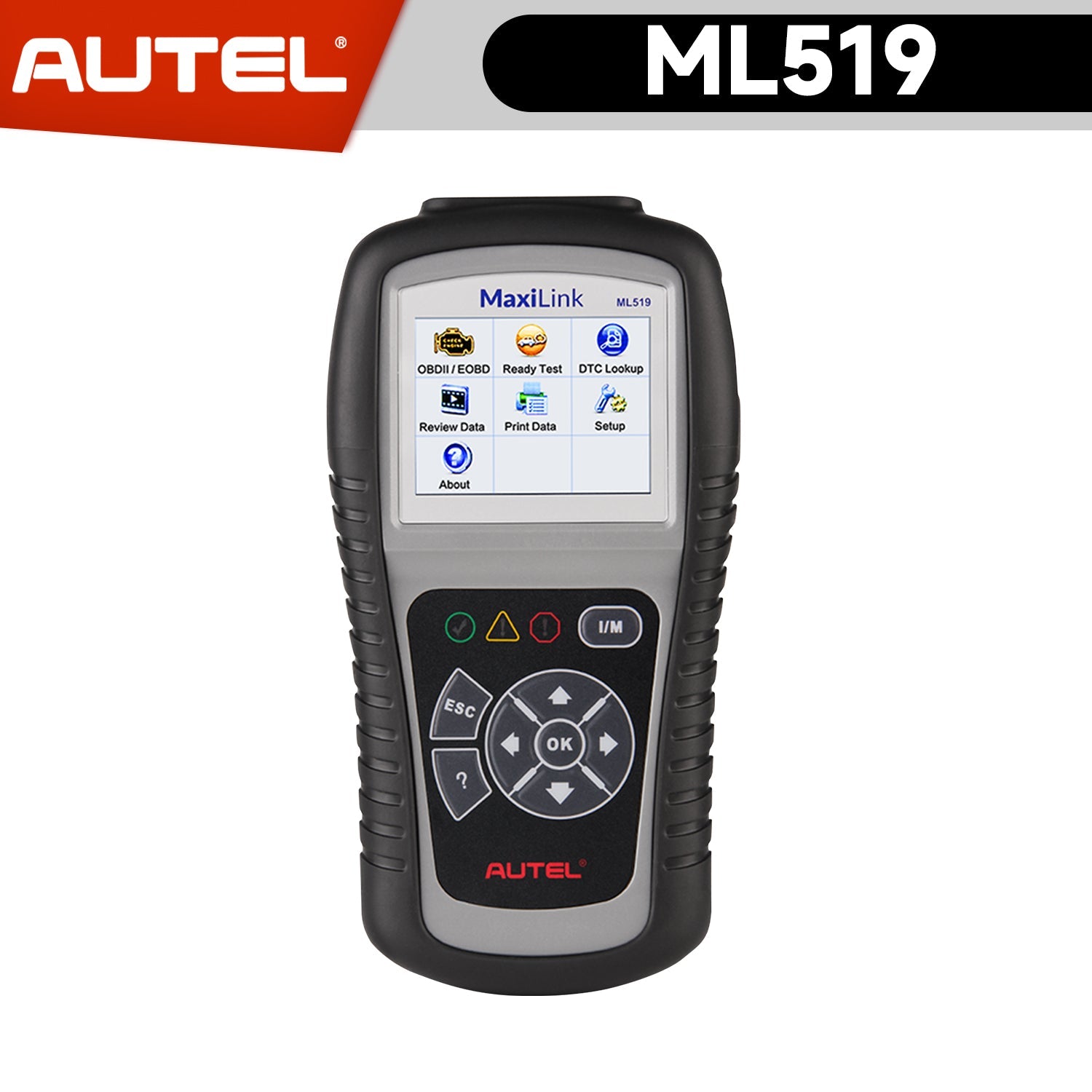

Autel MaxiLink ML519 Auto OBD II / EOBD Scanner Turn Off Check Engine/ Same as AL519

Full Function OBD2 Engine Scanner

The MaxiLink ML519 OBD II/EOBD Scanner supports all 10 modes of OBD II testing for complete vehicle diagnostic scan. Featuring the patented One-Click I/M Readiness Key, TFT color display and built-in speaker, the MaxiLink ML519 is a powerful, affordable code reader that enables technicians to quickly detect vehicle faults.

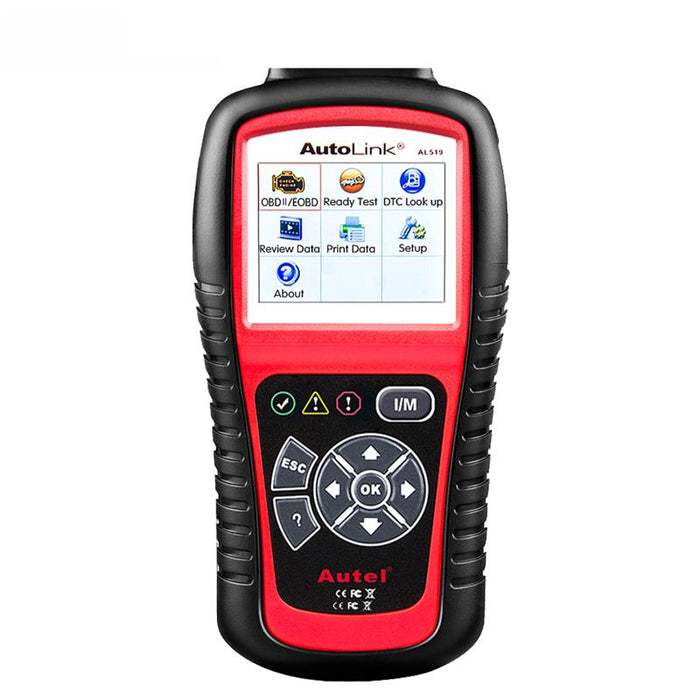

Note: Fuction of ML519 And AL519 is the same ,only difference is machine color,ML519 is gray ,and AL519 is red.

Autel ML519 Features:

1. Works on most 1996 and newer vehicles (OBDII & CAN) – domestic and import
2. Features the unique patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification
3. Bright color coded LEDs and built-in speaker provide both visual and audible tone for readiness verification
4. Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes
5. Easily determines the cause of the Check Engine Light(MIL)
6. Turns off Check Engine Light (MIL), clears codes and resets monitors
7. Displays DTC definition on the TFT color screen
8. Views freeze frame data
9. Displays monitor and I/M readiness status (emissions)
10. Reads live PCM datastream
11. Displays live O2 sensor test data
12. Graphs data (1996 and newer vehicles)
13. Reads, stores and playbacks live sensor data
14. Enhanced OBDII Mode 6
15. Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time
16. Retrieves vehicle information (VIN, CIN and CVN)
17. Multilingual menu and DTC definitions – English, Spanish and French, etc.
18. Internet updateable
19. Prints data via PC

Autel MaxiLINK ML519 Specifications:

• Display: TFT color display (320x240 dpi)
• Operating Temp.: 0 to 60 ℃ (32 to 140 ℉)
• Storage Temp.: -20 to 70 ℃ (-4 to 158 ℉)
• Power: 8.0 to 18.0 V provided via the vehicle battery
• Dimensions (LxWxH): 199 mm (7.83") x 104.5 mm (4.11") x 37.5 mm (1.48")
• Weight: 280 g (0.62 lb. without wire) 484 g (1.07 lb. with wire)

Autel MaxiLINK ML519 Package List:

• 1 x MaxiLink ML519
• 1 x User’s manual
• 1 x CD
• 1 x USB cable
• 1 x OBDII Cable
• 1 x Carry case
